Germany Type 3241/3374 Electric Control Valve Globe Valve Samson steel valve for gas and oil use

المعلومات الأساسية
مكان المنشأ: Garmany
اسم العلامة التجارية: Samson
إصدار الشهادات: CE EAC
رقم الموديل: 3241/3374
الحد الأدنى لكمية: 1 مجموعة
الأسعار: Negotiable
تفاصيل التغليف: تصدير صناديق خشبية للتجارة الخارجية ، وصناديق خشبية معقمة IPPC وصناديق الخشب الرقائقي للجمارك التصدي
وقت التسليم: 7 إلى 20 يوم عمل
شروط الدفع: L / C ، T / T ، D / A ، D / P ، MoneyGram
القدرة على العرض: 500 مجموعة لكلّ شهر
معامل KVS: 0.1 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10 16 25 40 60 63 80 100 160 200 260 مقعد Ø [مم: 1
درجة الحرارة المحيطة: -40 ... + 60 درجة مئوية مواد: صلب
الوزن تقريبا.: 1.8 كجم درجة الحماية: IP 54
تسليط الضوء:

,

,

electric pinch valve

Type 3241/3374 Electric Control Valve Samson steel valve for gas and oil use​



Product Introduction


Versatile control valves for industrial applications as well as for heating, ventilation and air-conditioning systems DN 15 to 150 · PN 16 to 40 · Temperatures from –196 to +450 °C

Special features



Type 3244 Three-way Valve or Type 3241 Globe Valve with Type 3374 Electric Actuator • Type 3241 Globe Valve, refer to Data Sheet u T 8015 • Type 3244 Three-way Valve, refer to Data Sheet u T 8026 The Type 3374 Electric Actuator is available in various versions (for details, refer to Data Sheet u T 8331): • With additional electrical equipment (limit contacts, resistance transmitter, positioner) Also available: – Electric control valves with other electric actuators, refer to Data Sheets u T 5874, u T 8340 and u T 8331 – Pneumatic actuators, refer to Data Sheet u T 8015 – Versions tested according to DIN EN 14597, refer to Data Sheet u T 5871 Installation The control valves can be installed in any desired position except with the actuator suspended downwards. The actuator is attached to the yoke with a fastening nut.



Specifications


Attachment
Pipe or wall mounting
Mounting Position    Upright, condensate drainage downwards
Fast mm/s 0.25
Ambient temperature -40° to + 60
Application Angle Valve, Global Valve


 Power supply

230 V (+10/–15 %), 50 Hz
230 V (+10/–15 %), 60 Hz
24 V (+10/–15 %), 50 Hz
24 V (+10/–15 %), 60 Hz
Duty type
S1 - 100 % according to EN 60034-1
Degree of protection
IP 54 according to EN 60529,
IP 65 with cable glands (can be retrofitted) 1)
Suspended mounting not permitted
Signal pressure (output)
0 bar up to the capacity of the supply pressure · Can be limited to approx. 2.3 bar by software
Permissible ambient temperature
–20 to +80 °C
–25 to +80 °C with metal cable gland
The limits in the test certificates additionally apply for explosion-protected versions
Influences
Temperature: ≤0.15 %/10 K
Effect of vibration: ≤0.25 % up to 2000 Hz and 4 g according to IEC 770
Supply air: None


Detailed Image

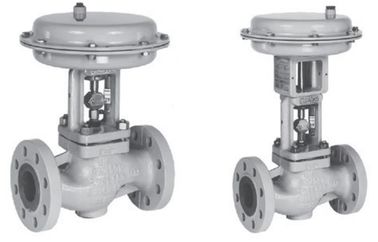

Germany Type 3241/3374 Electric Control Valve Globe Valve Samson steel valve for gas and oil use 0



Packaging and Delivery


Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free.  Size: 60*30*40 (cm)

The products will be shipped after receiving the deposit or full payment within 15 working days
