مكان المنشأ: | الصين |
---|---|
اسم العلامة التجارية: | ABB |
رقم الموديل: | IRB6700-200 / 2.6 |
الحد الأدنى لكمية: | 1 مجموعة |
الأسعار: | US $33510 |
تفاصيل التغليف: | ONE ABB محطة تجميع صناعية كبيرة روبوتية 6 محاور ABB IRB6700 6 محور ذراع روبوت صناعي تجميع تلميع التق |
وقت التسليم: | 30-60 يوم عمل |
شروط الدفع: | L / C ، T / T ، ويسترن يونيون |
القدرة على العرض: | 100 مجموعة / شهر |
اسم: | ABB IRB6700 6 محور ذراع روبوت صناعي الجمعية تلميع التقاط روبوت لحام وحمولة 200 كجم تصل إلى 2600 مم | تطبيق: | التجميع / التلميع / الانتقاء / اللحام |
---|---|---|---|
حمولة: | 200 كجم | تصل: | 2600 مم |
عدد المحاور: | 6 | مواد: | سبيكة المنيوم |
الحماية: | الأمراض المنقولة جنسياً: IP67. | تصاعد: | أرضية مقلوبة |
تكرار الموقف: | 0.05 ملم | مراقب: | خزانة مفردة IRC5 / وحدة تحكم مثبتة على لوحة IRC5 PMC |

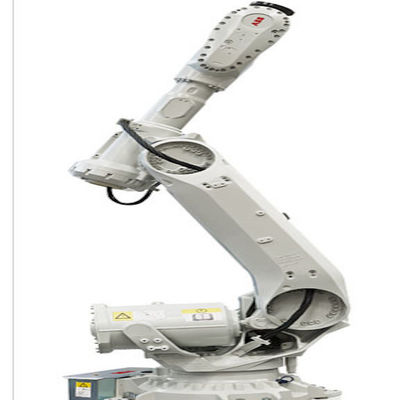

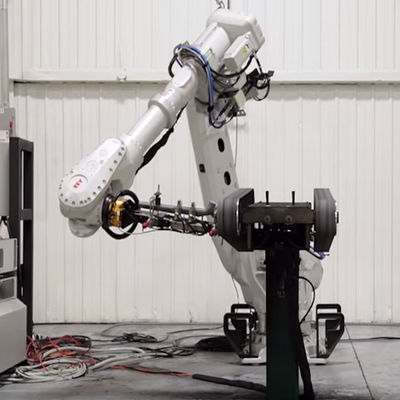

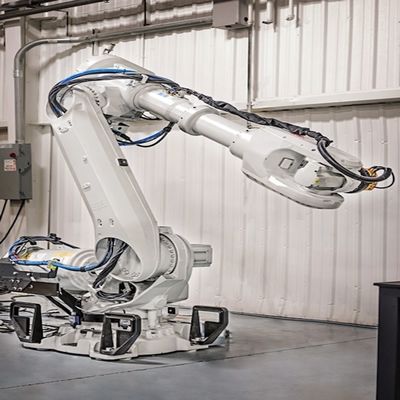

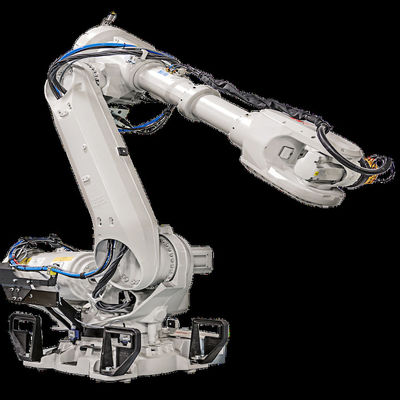

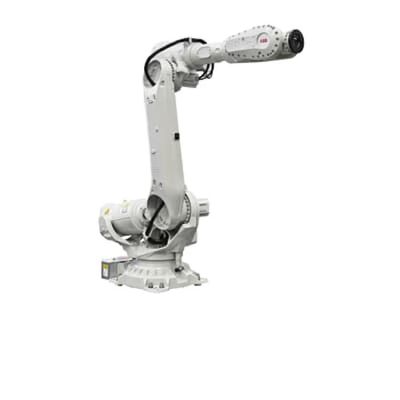

ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding robot and Payload 200Kg Reach 2600mm
Specification
Robot version | Reach(m) | Handling capacity(kg) | Center of gravity(kg) | Wrist torque(Nm) |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 200 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 155 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 150 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 300 | 300 | 1825 |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 175 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 140 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 145 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 270 | 300 | 1825 |
Number of axes 6 | ||||
Protection | Std:IP67.Option:Foundry Plus 2 | |||
Mounting | Floor,inverted | |||
Controller |
IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller |
Performance(according to ISO 9283)
Position repeatability |
Path repeatability |
|
IRB 6700-200/2.60 | 0.05mm | 0.10mm |
IRB 6700-155/2.85 | 0.10mm | 0.15mm |
IRB 6700-150/3.20 | 0.10mm | 0.15mm |
IRB 6700-300/2.70 | 0.10mm | 0.15mm |
Technical information
Electrical Connections | ||
Supply voltage | 200-600 V,50/60 Hz | |
Energy consumption | 2.8KW | |
Physical | ||
Robot base | 1004x720 mm | |
Robot weight(without Dress Pack) | ||
IRB 6700-200/2.60 | 1250kg | |
IRB 6700-155/2.85 | 1260kg | |
IRB 6700-150/3.20 | 1280kg | |
IRB 6700-300/2.70 | 1525kg |
