6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm

$17,000.00/Sets >=1 Sets
السعر
6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
تطبيق: معالجة
الميزات: الروبوت التعاوني صباحا
شرط: جديد
ضمان: 1 سنة ، 1 سنة
قوة: 350
الجهد االكهربى: 220
الصناعات المعمول بها: الفنادق ، محلات الملابس ، محلات مواد البناء ، مصنع التصنيع ، محلات تصليح الآلات ، مصانع الأغذية والم
الوزن (كجم): 78
موقع صالة العرض: المملكة المتحدة ، الولايات المتحدة ، إيطاليا ، فرنسا ، ألمانيا ، الهند
التفتيش الصادر عن الفيديو: قدمت
تقرير اختبار الآلات: قدمت
نوع التسويق: منتج عادي
ضمان المكونات الأساسية: سنة واحدة
المكونات الأساسية: علبة التروس ، المحرك
اسم المنتج: 6 محور ذراع cobot للذراع الروبوتية التعاونية cobot cnc elfin robot
عدد المحور: 6 محاور
أقصى حمولة: 12 كغ
أقصى مدى: 1000 مم
إمكانية التكرار (ISO 9283): ± 0.05 مم
مادة: سبائك الألومنيوم
تصنيف الحماية: IP54 / IP66
الموقف المتصاعد: الأرضية / السقف / الجدار
أوقات الحياة: 30000 هـ
ميناء: شنغهاي
معلومات اساسية
مكان المنشأ: قوانغدونغ ، الصين
اسم العلامة التجارية: Hans
شروط الدفع والشحن
تفاصيل التغليف: <i>One 6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm
القدرة على العرض: 5 قطعة / قطعة في الشهر
منتوج وصف

6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm



Main Specifications:


Maximum reach:1000 mm
Maximum payload:12 kg
Pose repeatability (ISO 9283):± 0.05 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Description
Product Name  6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm
Application 6 axis cobot arm ; cobot cnc; elfin robot collaborative robotic arm
Model Elfin 10
Robot Arm
Maximum reach 1000 mm
Maximum payload 12 kg
Pose repeatability (ISO 9283) ± 0.05 mm
Number of axes 6
Mounting position Floor/ Ceiling/Wall
Lifetime 30000h
Weight 17 kg
Protection rating IP54
Standard CE, TUV,KSc
Power consumption 200W
Material Aluminum alloy
Ambient temperature 0-45°C
Environment humidity 20-85%(No condensation)
Power supply DC 48V
Protocol CAN bus
A1 ±135°
A2 ±135°
A3 ±135°
A4 ±135°
A5 ±135°
A6 ±135°
Controller
Size  536mm*445mm*491mm
Weight 20Kg
Cable length 5m
Colour Black
Protocol Ethernet,Modbus-RTU/TCP
Power 100-240V/AC,50-60HZ
Protection rating IP54
I/O port 16 in/16 out
Teach pendant
Size  355mm*235mm*54mm
Weight 1.8Kg
Screen 12 inch Resistive LCD touch screen
Cable length 4m
Protection rating IP54
Colour Orange+black

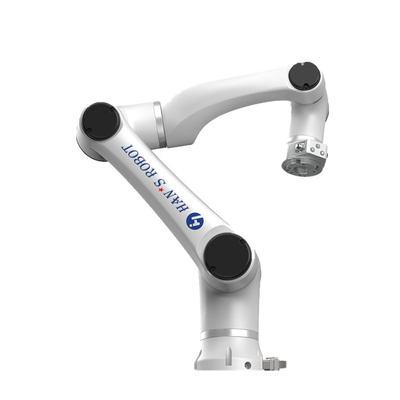

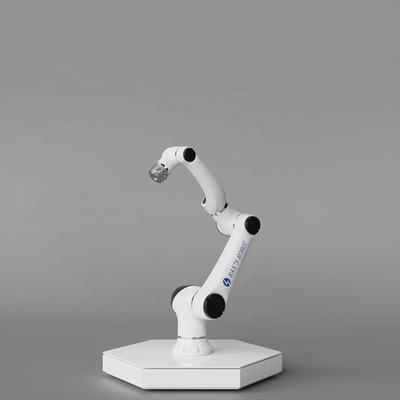

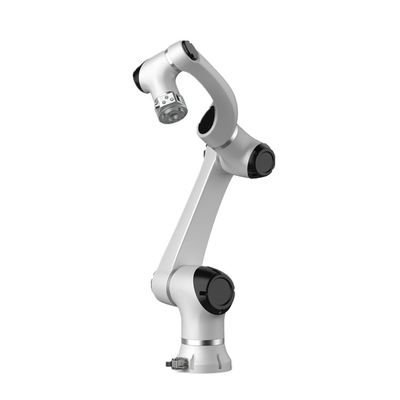

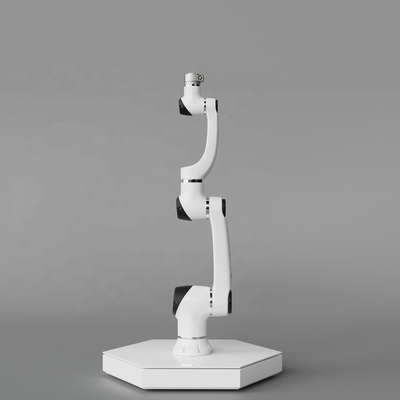

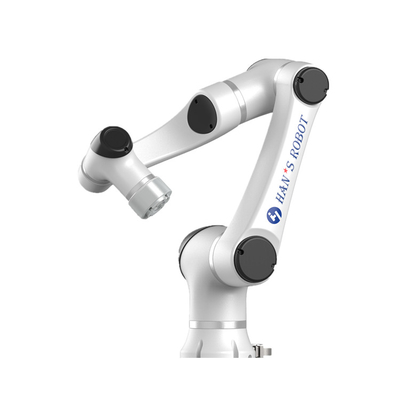

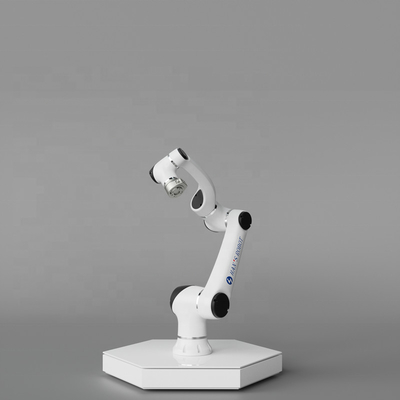

Detailed Images

6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm 06 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm 16 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm 26 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm 36 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm 4



6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm 5



Our Services

1.Swift delivery

 For common parts, we can deliver the goods within 3 days



2.Original products

 All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.



3.Quality Assurance



4.Technical Support

 Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

 Our staffs will keep 24h online and answer your question very quickly.
