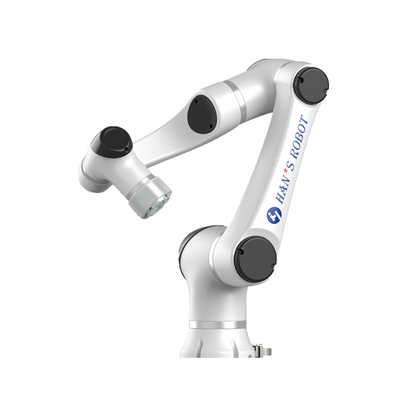

Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg

المعلومات الأساسية
مكان المنشأ: شنغهاي، الصين
اسم العلامة التجارية: Han's/hans
الأسعار: $12,000.00/Sets >=1 Sets
تفاصيل التغليف: ذراع كوبوت واحد صيني Hans Elfin 3 cobot Picker و 580 mm تصل إلى cobot 3 كجم التعبئة مع إطار خشبي للت
القدرة على العرض: 5 قطعة / قطعة في الشهر
تطبيق: منتقي كوبوت الميزات: كوبوت خفيف الوزن
شرط: جديد ضمان: سنة واحدة
البعد (l * w * h): 60 مم * 60 مم * 60 مم قوة: 500 واط ، حوالي 100 واط
الجهد االكهربى: 100-240 فولت الصناعات المعمول بها: محلات الملابس ، محلات مواد البناء ، مصنع التصنيع ، محلات تصليح الآلات ، مصانع الأغذية والمشروبات ، ا
الوزن (كجم): 68 موقع صالة العرض: كندا ، الولايات المتحدة ، إيطاليا ، ألمانيا ، الهند ، اليابان
التفتيش الصادر عن الفيديو: قدمت تقرير اختبار الآلات: قدمت
نوع التسويق: منتج جديد 2020 ضمان المكونات الأساسية: سنة واحدة
المكونات الأساسية: علبة التروس ، المحرك اسم النموذج: Cobot arm Chinese Hans Elfin 3 منتقي كوبوت وكوبوت 3 كجم
أقصى حمولة: 3 كغ ماكس تصل: 590 ملم
تواصل: TCP / IP تصنيف الحماية: IP54
تشكل التكرار (ISO 9283): +/- 0.05 ملم عدد المحور: 6 محاور
تعمل درجة الحرارة المحيطة: 0-50 درجة المواد الرئيسية: سبائك الألومنيوم
ميناء: شنغهاي

Product Description
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 0
Specification
item
value
Place of Origin
China
Shanghai
Brand Name
Han's robot
Application
packaging robot arm
Condition
New
Dimension(L*W*H)
60mm*60mm*60mm
Power
500W
After-sales Service Provided
Overseas service center available
Voltage
100-240 volt
Certification
CE EAC
Applicable Industries
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service
Online support
Local Service Location
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, South Korea, Chile, Colombia, Romania
Showroom Location
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Algeria, Romania, Kyrgyzstan, Nigeria, Australia
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
Gearbox, Motor
Model name
Elfin 3
Max payload
 3 kg
Max Reach
590mm
Communication
TCP/IP
Protection rating
IP54
Pose repeatability (ISO 9283)
+/- 0.05mm
Number of axis
6 axis
Operating ambient temperature
0-50°
Main material
Aluminum alloy
Power
About 100W
Packing & Delivery
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 1
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 2
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 3
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 4
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 5
ONE Chinese brand cobot Han's Robot Elfin 3 collaborative robot used as 6 axis packaging robot arm packing with fumigation wooden frame, WG: 45KG Controller and other parts packing with brown box, WG:55KG Total WG:100KG(>VG)
Company Profile
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 6
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 7
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 8
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 9
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 10
Cobot arm Chinese Hans Elfin 3 cobot picker and 590 mm working reach cobot 3 kg 11
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
