3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots

$6,500.00/Sets 1-9 Sets
السعر
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
الصناعات المعمول بها: الفنادق ، محلات الملابس ، محلات مواد البناء ، محلات تصليح الآلات ، مصنع التصنيع ، مصنع الأغذية والمش
موقع صالة العرض: مصر ، كندا ، تركيا ، المملكة المتحدة ، الولايات المتحدة ، إيطاليا ، فرنسا ، ألمانيا ، البرازيل ، الم
التفتيش الصادر عن الفيديو: قدمت
تقرير اختبار الآلات: قدمت
نوع التسويق: منتج جديد 2020
ضمان المكونات الأساسية: سنة واحدة
المكونات الأساسية: PLC ، المحرك
شرط: جديد
وزن: 4.8 كجم
ضمان: سنة واحدة
الوزن (كجم): 4.8 كجم
ماركة: هيتبوت
نموذج: Z-arm 1522
أقصى حمولة: 0.5 كجم
تصل الذراع: 220 ملم
التكرار: ± 0.1 مم
وصول المحور ع: 150 ملم
عدد المحور: 3
الجهد االكهربى: 220 فولت / 110 فولت 50-60 هرتز تيار مستمر 24 فولت
تواصل: إيثرنت
اثار: 160 * 160 * 45 ملم
ميناء: شنغهاي
معلومات اساسية
مكان المنشأ: الصين
اسم العلامة التجارية: Hitbot
شروط الدفع والشحن
تفاصيل التغليف: <i>3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots pac
القدرة على العرض: 5 قطعة / قطعة في الشهر
منتوج وصف
Product Description
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 0
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 1
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 2
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 3
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 4
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 5
Specification
item
value
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Brazil, Mexico, Spain, Thailand, Colombia
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC, Engine
Condition
New
Place of Origin
China
Brand Name
Hitbot
Weight
4.8kg
Warranty
1 Year
Weight (KG)
4.8kg
Brand
Hitbot
Model
Z-arm 1522
Max Payload
0.5Kg

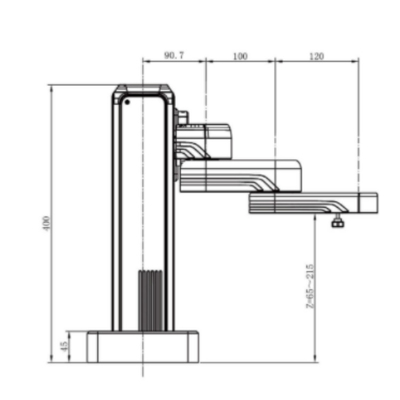

Arm Reach
220mm
Repeatability
±0.1mm
Z-axis Reach
150mm
Number of axis
3
Voltage
220V/110V 50-60HZ DC 24V
Communication
Ethernet
Footprint
160*160*45mm
Packing & Delivery
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots packing with fumigation wooden frame, WG:1705KG Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)
Company Profile
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 6
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 7
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 8
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 9
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 10
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 11
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot/ Robot Positioner/ Robot Track/ Robot Gripper/ Robot Control System

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 12
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 13
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 14

Product Features

1.Multiple Models This series of robots can be used in small parts assembly, dispensing, machine tending, material handling, electronics and many other applications in general industrial fields. 2.Reliable Performance It can adapt to harsh working environment, and can also be equipped with integrated joints which are easy to disassemble and transport. 3.Easy to Maintain Considering that improving maintainability is a key factor to reduce costs, the robot's after-sales and maintenance time is reduced by 15%. 4.Technical Support We will provide you with long-term technical services. If you have any technical problems or other needs during using our robot, you are welcome to contact us.
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 15
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 16
3 Axis Robot Arm Hitbot Z-Arm 1522 Cobot For Laser Engraving Machines As Collaborative Robots 17
