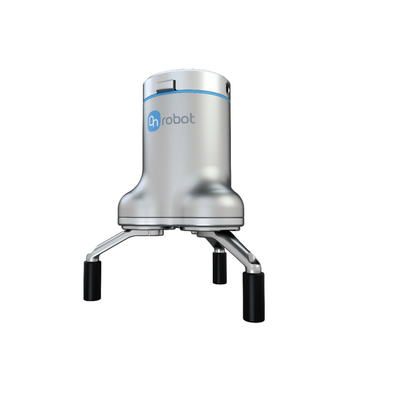

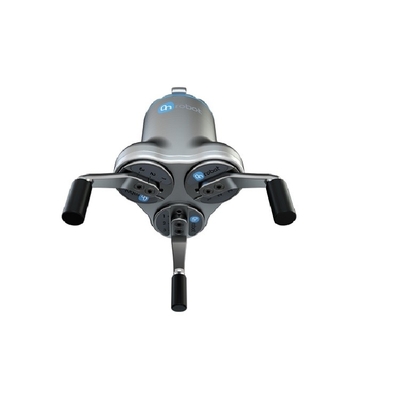

Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place

Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place

مكان المنشأ:

الدنمارك

اسم العلامة التجارية:

Onrobot

رقم الموديل:

3FG15

اتصل بنا

اطلب اقتباس
تفاصيل المنتج
النوع:
3FG15
الحمولة:
15 كجم/33 رطل
قرار موقف الإصبع:
0.1 مللي متر/0.004 بوصة
قبضة قوة القبضة:
10-240 ن
المحرك:
BLDC كهربائي متكامل
الوزن:
1.15 كجم/2.5 رطل
سرعة الإمساك:
125 مللي متر/ثانية
تجتاح الوقت:
500 مللي ثانية
أبعاد:
156 × 158 × 180 ملم / 6.14 × 6.22 × 7.08 بوصة
تصنيف IP:
IP67
وصف المنتج

Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place

Specification


item

value

Condition

New

Warranty

1 Year

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

Weight (KG)

0.814

Showroom Location

Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

PLC, Motor

Standard or Nonstandard

Standard

Structure

General Cylinder

Power

Pneumatic

Body Material

Aluminum

Place of Origin

Denmark

Brand Name

Onrobot

Type

3FG15

Payload

15kg/33lb

Finger position resolution

0.1mm/0.004inch

Gripping force Grip

10-240N

Motor

Integrated, electric BLDC

Weight

1.15kg/2.5lb

Gripping speed

125mm/s

Gripping time

500ms

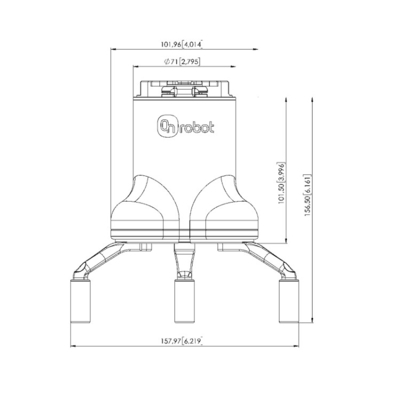

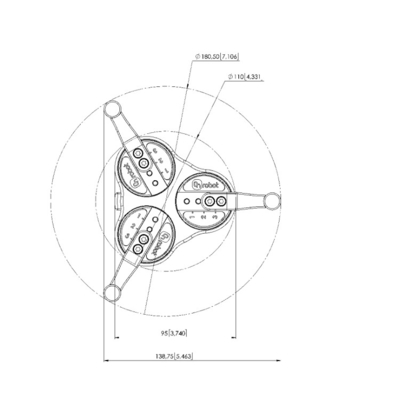

Dimensions

156 x 158 x 180mm/6.14 x 6.22 x 7.08inch

IP Classification

IP67


Packing & Delivery


Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 0

Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 1

Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And CNC Arm 6 Axis Robot For Pick And Place packing with fumigation wooden frame

Company Profile

Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 2

Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 3

Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 4


Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 5

Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 6

Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 7

Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot/ Robot Positioner/ Robot Track/ Robot Gripper/ Robot Control System

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese


Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 9


Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 10


Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 11


Model

AUBO i3

Maximum reach

625mm

Maximum payload

3kg

Weight

15.5 kg

Power

DC48V





Product Features

1.Multiple Models This series of robots can be used in small parts assembly, dispensing, machine tending, material handling, electronics and many other applications in general industrial fields. 2.Reliable Performance It can adapt to harsh working environment, and can also be equipped with integrated joints which are easy to disassemble and transport. 3.Easy to Maintain Considering that improving maintainability is a key factor to reduce costs, the robot's after-sales and maintenance time is reduced by 15%. 4.Technical Support We will provide you with long-term technical services. If you have any technical problems or other needs during using our robot, you are welcome to contact us.


Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 12


Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 13


Large Stroke 3 Finger Gripper With 15KG Payload Work With Cobot And 6 Axis Robot For Pick And Place 14
