| Attribute | Value |
|---|---|
| Output signal | 4 to 20 mA with HART |
| Wetted materials | 316L stainless steel, Alloy C, Tantalum (optional) |
| Applications | hygienic, chemical, and oil & gas applications |
| Process connections | Threaded, flange, hygienic, remote seal |
| Process temperature (Standard) | -40 to +125 °C (-40 to +257 °F) |

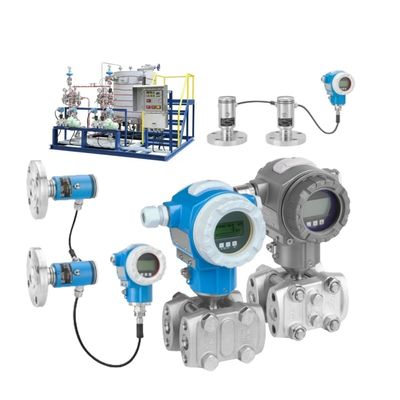

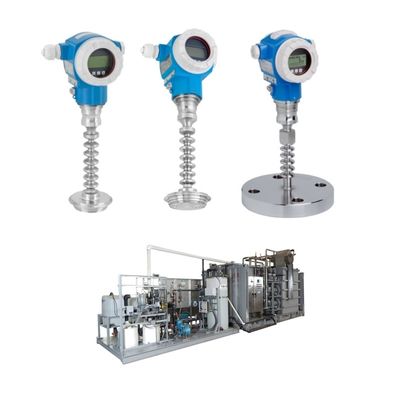

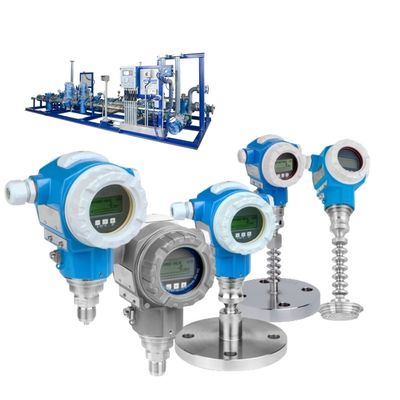

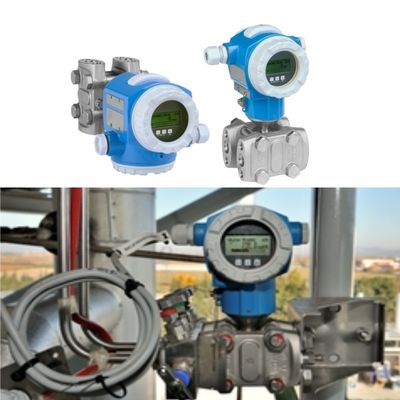

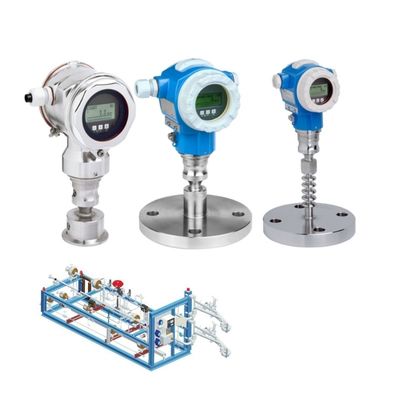

The Endress+Hauser Deltabar FMD71 is a high-accuracy differential pressure transmitter designed for industrial process control. Featuring a robust metal diaphragm and HART 7 communication, it delivers reliable performance in applications such as flow measurement, level control, and filter monitoring.
| Parameter | Value |
|---|---|
| Model | Endress+Hauser Deltabar FMD71 |
| Type | Smart Metal Diaphragm Pressure Transmitter |
| Measurement Range | 0-100 mbar to 0-60 bar |
| Accuracy | ±0.05% FS |
| Output Signal | 4-20mA, HART, PROFIBUS PA |
| Protection Class | IP67/NEMA 4X |
| Material | Stainless Steel 316L |
| Temperature Range | -40°C to +150°C |
| Power Supply | 12-36V DC |
| Communication | HART 7, WirelessHART |
| Certification | SIL 2/3, ATEX, IECEx |
| Related Models | PMD75, Cerabar PMP51, PMP71 |
