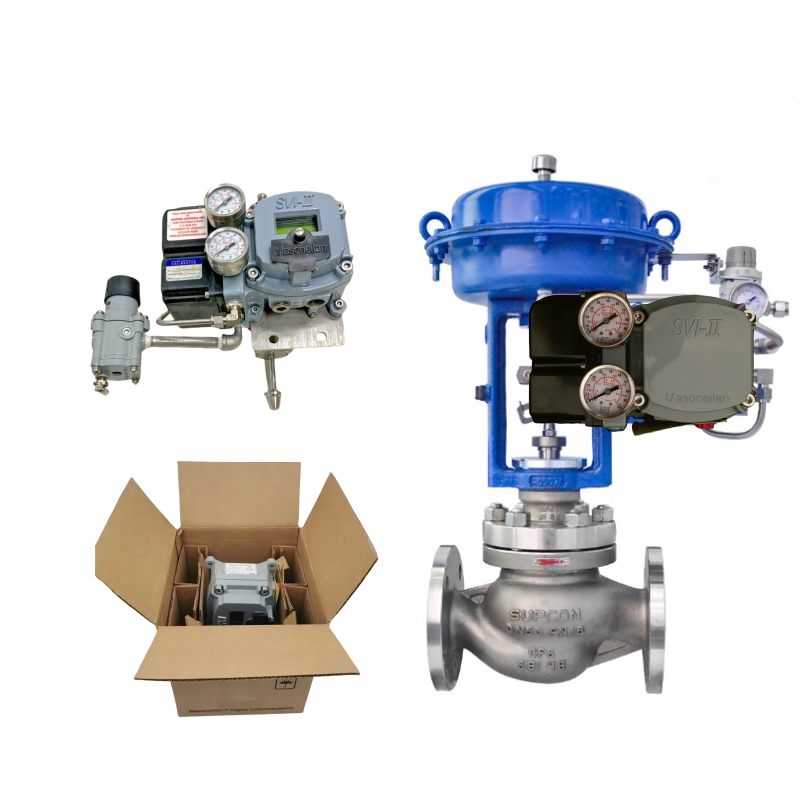

The Masoneilan SVI2 AP-22123121 is an advanced model of the SVI II AP series of digital valve positioners . It is designed for highly accurate and responsive control of pneumatic actuators, both linear and rotary, using a 4-20 mA signal with HART communication.
Ideal for critical applications where performance, diagnostics, and reliability are paramount, this positioner enhances overall plant efficiency and minimizes unplanned downtime. Its rugged design and intelligent features make it well-suited for use in hazardous process environments.
| Specification | Detail |
|---|---|
| Model | Masoneilan SVI2 AP-22123121 |
| Input Signal | 4-20 mA with HART |
| Power Supply | Loop-powered |
| Actuator Compatibility | Linear and rotary |
| Calibration | Automatic or manual |
| Operating Temp Range | -40°C to +85°C |
| Enclosure Rating | IP66 / NEMA 4X |
| Housing Material | Aluminum (anodized) or optional stainless steel |
| Communication | HART, compatible with AMS or Field Communicator |
| Mounting | NAMUR and custom bracket options |
| Certification | ATEX, IECEx, FM, CSA explosion-proof and IS |
Need help selecting or integrating the Masoneilan SVI2 AP-22123121 valve positioner?
Our experts are ready to assist with technical support, pricing, global shipping, and full control valve assembly solutions.
