Product Overview

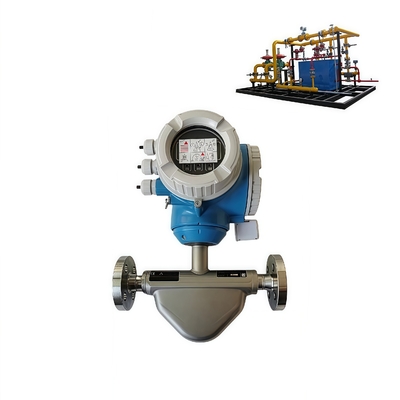

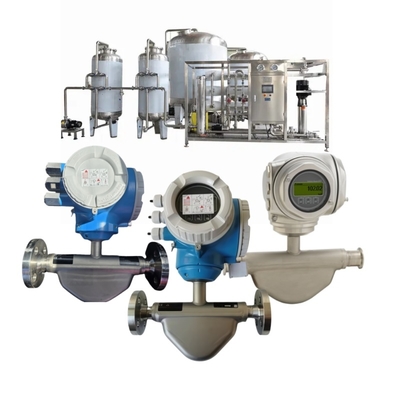

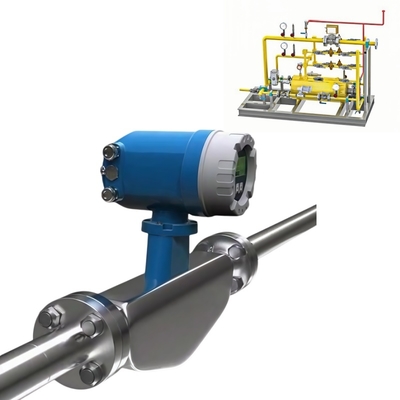

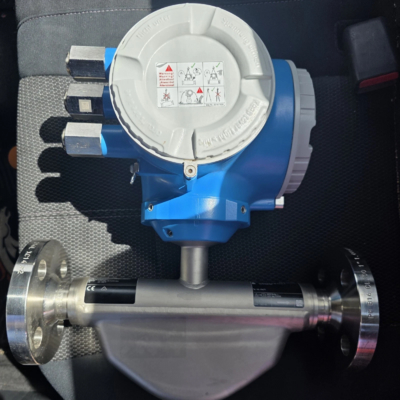

The Endress+Hauser Proline Promass E 300 is a compact Coriolis mass flow meter designed for precise measurement of liquids and gases. With dual-tube sensor technology and Heartbeat Technology®, it ensures high accuracy and process safety. Ideal for sanitary, chemical, and marine applications, it supports multi-variable outputs including mass flow, density, and temperature.
High Accuracy: ±0.15% mass flow error (liquid), ±0.10% optional.
Multi-Variable Measurement: Simultaneously monitors mass flow, density, and temperature.
Sanitary Certifications: 3-A, EHEDG, and cGMP approved for food & beverage use.
Flexible Communication: Supports HART, PROFIBUS, Modbus, and Ethernet/IP.
Robust Design: Corrosion-resistant materials (904L/316L) and IP67 protection.
| Parameter | Specification |
|---|---|
| Nominal Diameter | DN8 to DN80 (⅜" to 3") |
| Measurement Range | 0–180,000 kg/h (0–6615 lb/min) |
| Accuracy (Liquid Mass) | ±0.15% (standard), ±0.10% (option) |
| Accuracy (Gas Mass) | ±0.50% |
| Process Pressure | PN100/Class 600/63K |
| Temperature Range | -40°C to +150°C (-40°F to +302°F) |
| Communication | HART, PROFIBUS, Modbus, Ethernet/IP |
| Protection Rating | IP66/67 / NEMA 4X/6P |
Food & Beverage: Accurate dosing in brewing and dairy processes.
Chemical Industry: Corrosive liquid measurement in batch control.
Marine & Offshore: Fuel and lubricant monitoring in shipboard systems.
