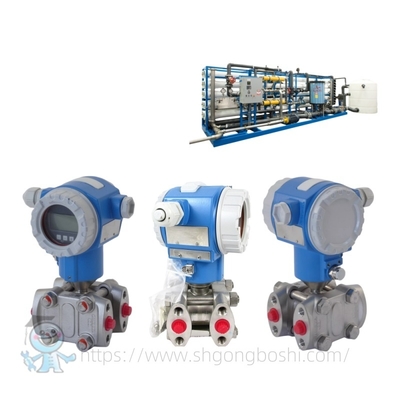

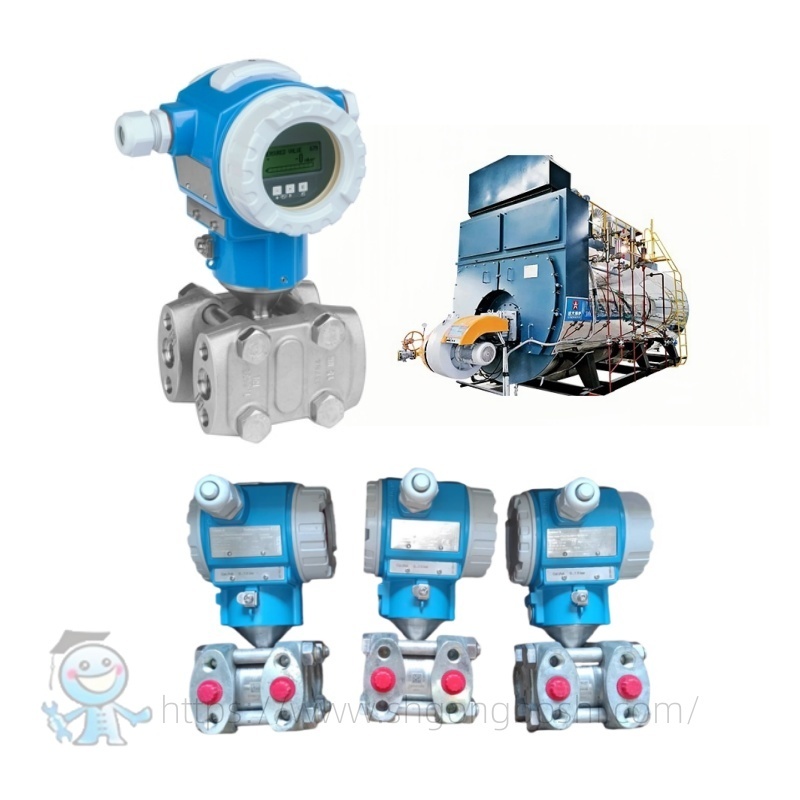

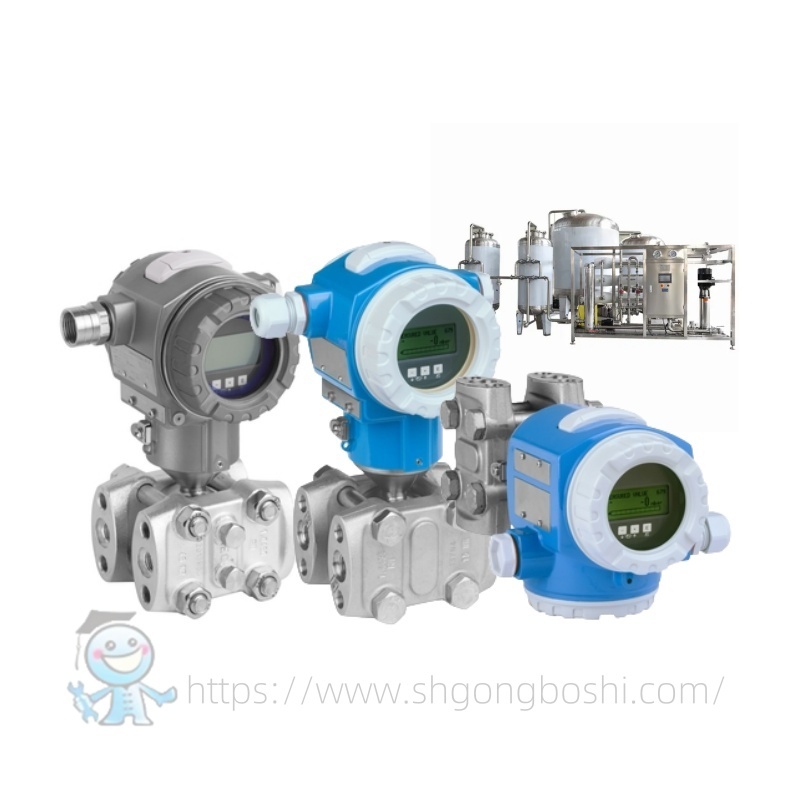

The Endress+Hauser Deltabar PMD75 is a state-of-the-art differential pressure transmitter designed for industrial applications requiring exceptional accuracy and reliability. Combining advanced metallic sensor technology with intelligent diagnostics, this device excels in flow, level, and pressure monitoring across harsh environments. Its modular design and HART/PROFIBUS/Foundation Fieldbus communication protocols make it a versatile solution for process automation.
| Parameter | Details |
|---|---|
| Measuring Range | 0.25 mbar to 40 bar (0.0036 to 600 psi) |
| Accuracy | Standard: ±0.05% |
| Output Signal | 4-20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus |
| Material | 316L stainless steel housing, metallic diaphragm |
| Process Temperature | -40°C to +85°C (-40°F to +185°F) |
| Ambient Temperature | -50°C to +85°C (-58°F to +185°F) |
| Protection Rating | IP66/67, NEMA 6P |
| Communication | HART 7, PROFIBUS PA, Foundation Fieldbus |
| Power Supply | 10.5-45 V DC (non-Ex) |
| Safety Certification | SIL3 (IEC 61508), ATEX, FM, CSA |
| Attribute | Value |
|---|---|
| Wetted materials | 316L stainless steel, Alloy C, Tantalum (optional) |
| Output signal | 4 to 20 mA with HART |
| Applications | hygienic, chemical, and oil & gas applications |
| Process temperature(Standard) | -40 to +125 °C (-40 to +257 °F) |
