Yokogawa EJX910A Differential Pressure Transmitter: Technical Overview
The Yokogawa EJX910A represents the pinnacle of differential pressure measurement technology, delivering exceptional performance and reliability for the most demanding industrial applications. As part of Yokogawa's flagship EJX series, this transmitter incorporates advanced single-crystal silicon resonant sensor technology that sets new standards for measurement precision, stability, and durability in process control environments.
Core Technology and Performance
The EJX910A utilizes Yokogawa's innovative Silicon Resonant Sensor technology, which features a unique single-crystal silicon structure that resonates at a frequency proportional to the applied pressure. This technology enables remarkable accuracy of up to ±0.04% of span, with outstanding long-term stability that minimizes calibration requirements. The sensor's design provides exceptional resistance to vibration, shock, and temperature fluctuations, maintaining reliable performance in challenging operating conditions. The transmitter covers a wide range of differential pressure measurements from 0.5 kPa to 14 MPa, with static pressure capabilities up to 42 MPa, making it suitable for high-pressure applications in various industries.
Advanced Features and Capabilities
This transmitter incorporates sophisticated diagnostic functions through Yokogawa's enhanced Heartbeat Technology, which provides continuous self-monitoring and verification of device integrity without process interruption. The EJX910A supports multiple communication protocols including HART, BRAIN, FOUNDATION Fieldbus, and PROFIBUS PA, offering flexibility for integration into diverse control systems. Its robust construction features all-welded stainless steel housing with IP67 and NEMA 4X protection, ensuring reliable operation in harsh environments. The transmitter also offers extensive material options for process connections, including Hastelloy, titanium, and other exotic alloys for corrosive media applications.
Application Versatility and Safety Compliance
The EJX910A is designed for critical applications across various industries including oil and gas, chemical processing, power generation, and pharmaceutical manufacturing. It excels in differential pressure measurement for flow, level, and pressure applications, particularly where high accuracy and reliability are essential. The transmitter meets rigorous safety standards with SIL 2/SIL 3 certification according to IEC 61508/61511, making it suitable for safety instrumented systems. Its comprehensive diagnostic capabilities and proven reliability make it an ideal choice for applications requiring minimal maintenance and maximum operational availability.
| Category | Details |
|---|---|
| Product Name | Yokogawa EJX910A Differential Pressure Transmitter |
| Series | EJX Series (Flagship) |
| Type | Differential Pressure Transmitter |
| Core Technology | Single-crystal Silicon Resonant Sensor |
| Accuracy | Up to ±0.04% of span |
| Long-Term Stability | Exceptional; minimizes calibration requirements |
| Measurement Range | 0.5 kPa to 14 MPa (Differential Pressure) |
| Static Pressure Capability | Up to 42 MPa |
| Resistance | High resistance to vibration, shock, and temperature fluctuations |
| Diagnostics | Heartbeat Technology with continuous self-monitoring and verification |

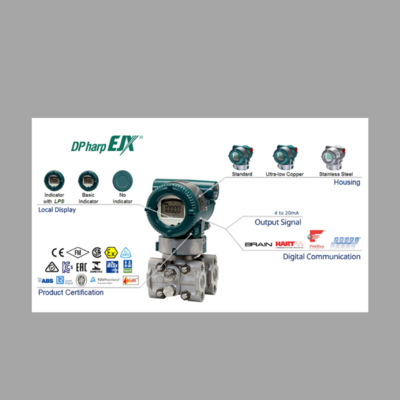

| Communication Protocols | HART, BRAIN, FOUNDATION Fieldbus, PROFIBUS PA |
| Housing / Construction | All-welded stainless steel |
| Protection Ratings | IP67, NEMA 4X |
| Process Wetted Materials | Options include Hastelloy, Titanium, and other exotic alloys |
| Operating Temperature Range | -50 to 120 °C |
| Applications | Flow, Level, and Pressure measurement in Oil & Gas, Chemical, Power, Pharmaceutical |
| Safety Compliance | SIL 2 / SIL 3 (IEC 61508 / 61511) |
| User Features | Rotatable LCD indicator, local parameter configuration, simplified calibration |
| Benefits | Reduced maintenance costs, improved process efficiency, enhanced operational safety |
| Special Advantages | High precision, robust design, versatile applications, advanced diagnostics |
Environmental Adaptability and User Benefits
Operating within a wide temperature range from -50 to 120°C, the EJX910A maintains stable performance in extreme conditions. The transmitter's design emphasizes user convenience with features like a rotatable LCD indicator, local parameter configuration, and simplified calibration procedures. By combining unmatched measurement performance with advanced diagnostics and robust construction, the Yokogawa EJX910A provides significant value through reduced maintenance costs, improved process efficiency, and enhanced operational safety, establishing itself as a premier solution for critical differential pressure measurement applications worldwide.
