Rosemount 214C RTD Temperature Sensor 3144P Transmitter 114C Thermowell

1
MOQ
1500~2500$
السعر
Rosemount 214C RTD Temperature Sensor 3144P Transmitter 114C Thermowell
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
نوع العرض: شاشة LCD
قرار درجة الحرارة: 0.05 درجة مئوية
واجهة الاتصال: هارت ، مؤسسة Fieldbus ، Profibus PA
مادة: الألومنيوم ، الفولاذ المقاوم للصدأ
ضمان: 1 سنة
مدخل: قدرة مستشعر مزدوجة وفردية مع مدخلات المستشعر العالمي
إشارة الإخراج: بروتوكول 4-20 مللي أمبير/هارت
السكن: جبل حقل المزدوج
دقة: ± 0.05 درجة مئوية الدقة المرجعية
استقرار: ± 0.25 درجة مئوية لمدة 20 عامًا (الأداء المتطرف) ، أو 10 سنوات
بروتوكولات الاتصال: هارت ، مؤسسة Fieldbus ، Profibus PA
معلومات اساسية
مكان المنشأ: الصين
اسم العلامة التجارية: Rosemount
رقم الموديل: 3144p
شروط الدفع والشحن
شروط الدفع: ر/ر
منتوج وصف
Product Overview

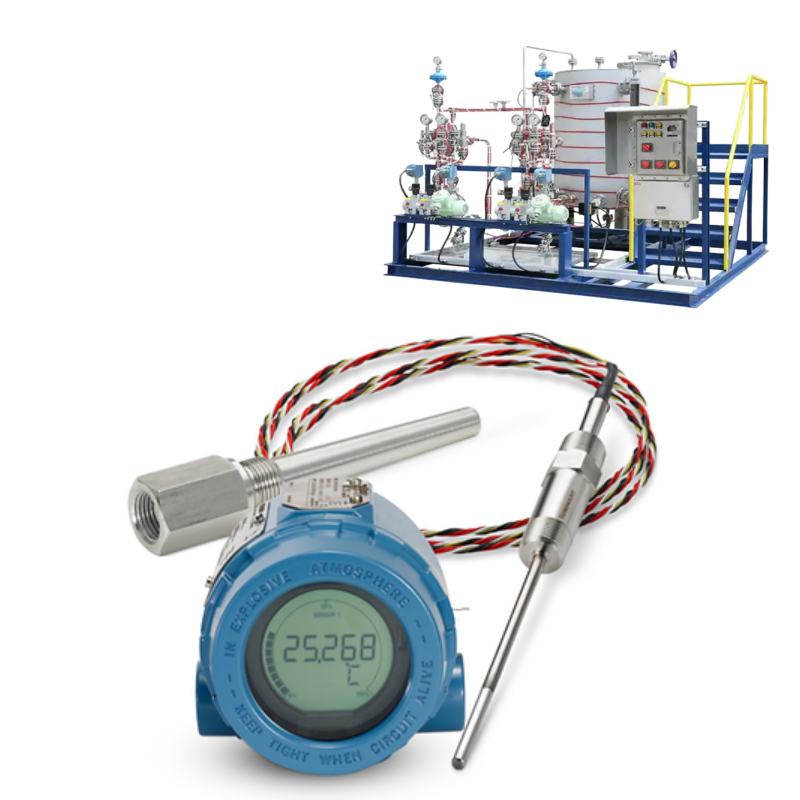

The Rosemount 3144P Temperature Transmitter is a leading solution in Emerson’s temperature measurement portfolio, designed for precision, safety, and long-term stability. Known for its robust performance in critical applications, the 3144P provides industry-leading accuracy and diagnostics, ensuring reliable temperature measurement and operational efficiency.

With features like dual sensor capability, advanced predictive diagnostics, and SIL certification, the 3144P is engineered to reduce downtime, improve safety, and deliver consistent results across a wide range of industries.


Features
  • High Accuracy: Exceptional temperature measurement accuracy for RTDs and thermocouples
  • Dual Sensor Support: Enables redundancy, differential measurement, or backup sensor switching
  • Predictive Diagnostics: Detects sensor drift, wiring issues, and instrument health
  • Long-Term Stability: Designed for reliable operation in harsh process environments
  • Safety Certified: SIL 2/3 approval for use in safety instrumented systems
  • Flexible Communication: Supports HART, FOUNDATION Fieldbus, and WirelessHART
  • Versatile Mounting Options: Field-mount, head-mount, and DIN rail versions available

Technical Specifications
  • Input Types: RTDs (Pt100, Pt500, Pt1000), Thermocouples (J, K, T, E, etc.), mV, Ohm
  • Accuracy: ±0.14 °C (RTD), ±0.1% of reading (thermocouples)
  • Output: 4–20 mA with HART, FOUNDATION Fieldbus, WirelessHART
  • Temperature Range: -200 °C to +850 °C (depending on sensor)
  • Diagnostics: Sensor drift, hot backup, loop integrity monitoring
  • Certifications: SIL 2/3, ATEX, IECEx, FM, CSA, CE
  • Housing Options: Aluminum, stainless steel, explosion-proof enclosures

Applications
  • Oil and Gas: Pipeline monitoring, offshore platforms, refining processes
  • Chemical Industry: High-precision measurement in corrosive environments
  • Power Generation: Steam turbine monitoring, boiler temperature measurement
  • Pharmaceuticals: Batch process temperature control
  • General Industry: Versatile temperature transmitter for a wide range of process needs

FAQ – Rosemount 3144P

Q1: What industries typically use the Rosemount 3144P?
It is widely applied in oil and gas, chemical, refining, and power generation industries.

Q2: Can the 3144P transmitter work with both RTDs and thermocouples?
Yes, it supports a wide range of RTDs and thermocouple sensor types.

Q3: Does the 3144P offer safety certification?
Yes, it is SIL 2/3 certified and suitable for safety instrumented systems (SIS).

Q4: Is WirelessHART communication available for this model?
Yes, WirelessHART is supported for flexible remote monitoring.


Contact Us

For pricing, technical support, and fast delivery of the Rosemount 3144P Temperature Transmitter, please reach out:

Phone: +86-15000725058
Website: www.shgongboshi.com
Email: info@shgongboshi.com

We specialize in genuine Emerson Rosemount instruments, with global export capability and fast lead times.
