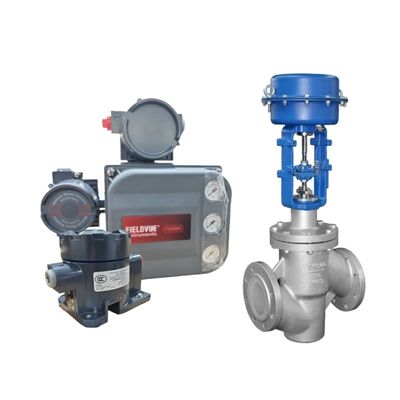

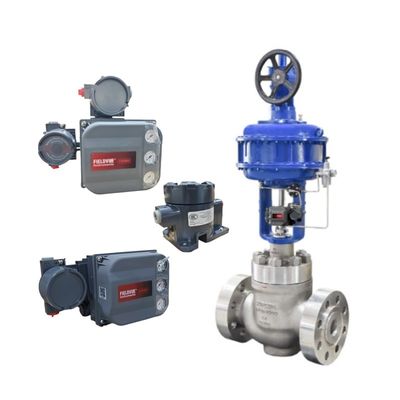

The Fisher DVC6205 and DVC6215 Valve Positioners are innovative remote mount digital controllers designed to provide precise valve automation in challenging industrial settings. The DVC6205 base unit, combined with the DVC6215 feedback unit, enables non-contact, linkage-less positioning for high-vibration or high-temperature applications. Leveraging HART communication and FIELDVUE performance diagnostics, these positioners ensure accurate control and predictive maintenance, minimizing downtime. Certified for hazardous areas and compliant with SIL standards, they are perfect for oil and gas, chemical, and power industries, offering flexible remote mounting up to 150 feet from the actuator.
| Parameter | DVC6205/DVC6215 |
|---|---|
| Input Signal | 4–20 mA HART |
| Supply Pressure | 1.4–10.3 bar (20–150 psig) |
| Output Signal | Pneumatic (3–15 psi) |
| Accuracy | ±0.75% of span |
| Temperature Range | DVC6205: -52°C to +85°C (-62°F to +185°F); DVC6215: -52°C to +125°C (-62°F to +257°F) |
| Enclosure Rating | IP66/NEMA 4X |
| Remote Mount Distance | Up to 150 feet (45 m) |
| Certifications | ATEX, IECEx, FM, CSA, SIL 3 capable |
| Actuator Compatibility | Rotary and linear, single/double-acting |
| Air Consumption | 0.28–0.38 Nm³/h (0.17–0.23 SCFM) |
| Electrical Connections | 1/2-inch NPT |
| Pneumatic Connections | 1/4 NPT |
| Weight | DVC6205: 4.5 kg (10 lbs); DVC6215: 0.9 kg (2 lbs) |
The Fisher DVC6205 and DVC6215 Valve Positioners are designed for remote mount automation in critical industries:
It allows electronics to be mounted away from the valve, protecting against high temperatures and vibrations.
Up to 150 feet (45 m) between the DVC6205 base and DVC6215 feedback unit.
Yes, it uses HART for digital diagnostics and configuration.
Yes, it is SIL 3 capable for safety instrumented systems.
It works with rotary and linear actuators, single or double-acting, from Fisher and third parties.
For more information about the Fisher DVC6205 and DVC6215 Valve Positioners, pricing, or to request a demo, contact our team:
