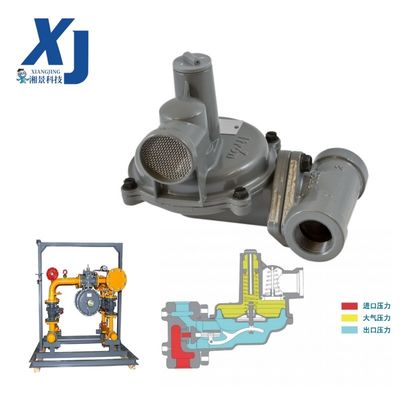

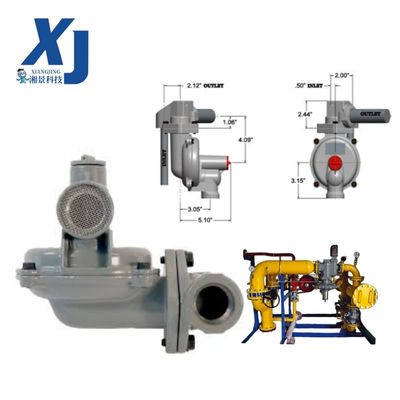

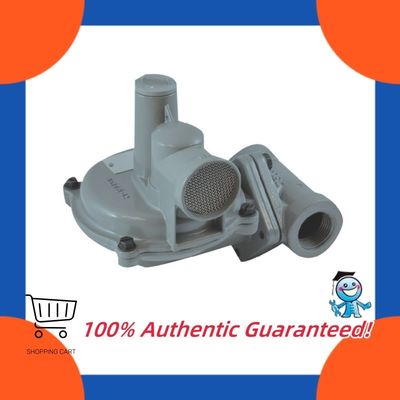

The Itron B42 Pressure Regulator is a user-friendly, self-operated regulator optimized for safe and straightforward installation in residential and commercial gas systems. With a molded diaphragm and internal relief, it provides quick pressure adjustment and overpressure protection for appliances like water heaters and furnaces. Its lightweight cast iron body and NPT connections ensure easy handling and compatibility, while the one-inch vent facilitates safe venting. Designed for low to intermediate pressures, the B42 prioritizes safety and simplicity, reducing installation time and risks in gas distribution networks.
| Parameter | Specification |
|---|---|
| Connection Size | 3/4" or 1" NPT |
| Maximum Inlet Pressure | 125 psig (8.6 barg) |
| Outlet Pressure Range | 3 to 20 in. w.c. (7.5 to 50 mbar) |
| Maximum Capacity | 1,400 SCFH at 1 psig inlet |
| Body Material | Cast Iron |
| Diaphragm Material | Molded Synthetic Rubber |
| Vent Size | 1 inch |
| Temperature Range | -20°F to 150°F (-29°C to 66°C) |
| Certifications | CSA, CE |
The Itron B42 Pressure Regulator is built for safe gas system installations:
Its compact size and internal relief make it safe and easy for home gas installations.
The one-inch vent allows quick relief, preventing pressure buildup.
Yes, it handles natural gas, propane, and mixed fuels effectively.
The molded diaphragm and lever ratio ensure fast, sensitive adjustments.
No, the internal relief handles overpressure internally.
Contact our team for inquiries about the Itron B42 Pressure Regulator, pricing, or to schedule a demo:
