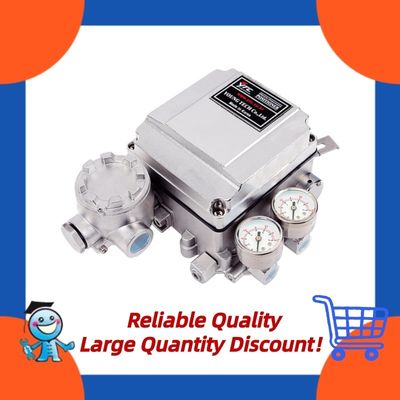

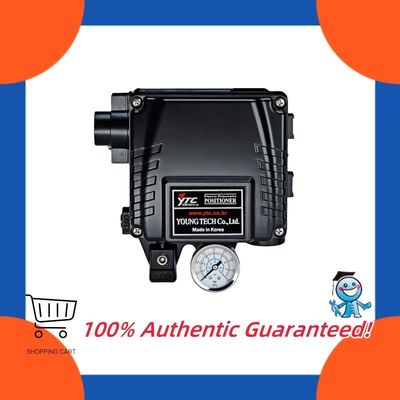

The Rotork YT-1000 Electro-Pneumatic Positioner is a reliable, user-friendly device designed for accurate control of pneumatic linear and rotary valve actuators using electrical signals. Featuring simple zero and span adjustments with internal hand dials, it ensures quick calibration and stable operation. With high vibration resistance (no resonance between 5 to 200 Hz), the YT-1000 is ideal for industrial applications requiring precise positioning, such as chemical processing and oil and gas. Its compact aluminum enclosure and full/1/2 split range capability make it a versatile choice for demanding environments.
| Parameter | Specification |
|---|---|
| Input Signal | 4–20 mA |
| Air Supply Pressure | 1.4–7 bar (20–100 psi) |
| Stroke Range | Linear: 10–100 mm; Rotary: 90–120° |
| Linearity | ±1% of span |
| Hysteresis | ±0.5% of span |
| Repeatability | ±0.3% of span |
| Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Enclosure Rating | IP66 |
| Power Consumption | <1 W |
| Certifications | ATEX, FM, CSA |
The Rotork YT-1000 Positioner is ideal for precise valve control in industrial settings:
Its design eliminates resonance between 5 to 200 Hz for stable operation.
Yes, the YT-1000R variant is optimized for rotary motion.
Standard 4–20 mA for electrical control.
Yes, simple zero-span adjustments with hand dials.
IP66 for dust and water resistance.
For more information about the Rotork YT-1000 Valve Positioner, pricing, or to request a demo, contact our team:
