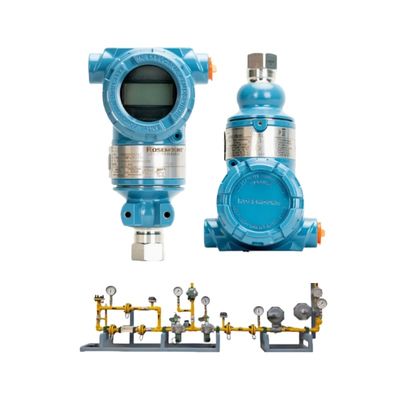

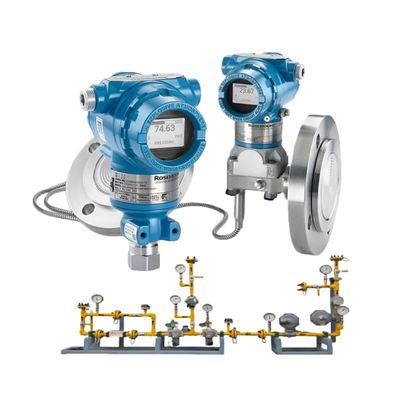

The Rosemount 3051TG Gauge Pressure Transmitter is a rugged, high-performance device engineered for reliable pressure measurement in challenging industrial environments. Measuring gauge pressure with ±0.04% accuracy and long-term stability, it withstands harsh conditions like vibration and temperature extremes. With 4-20 mA HART communication and optional FOUNDATION Fieldbus, the 3051TG integrates seamlessly into control systems for real-time monitoring. Certified for hazardous areas, it protects processes in oil and gas, chemical, and power generation, ensuring safety and operational integrity.
| Parameter | Specification |
|---|---|
| Measurement Type | Gauge Pressure |
| Range | 0.1 to 400 bar (1.45 to 5,800 psi) |
| Accuracy | ±0.04% of span |
| Stability | ±0.125% of URL/5 years |
| Output Signal | 4-20 mA HART, FOUNDATION Fieldbus |
| Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Process Temperature | -40°C to +120°C (-40°F to +248°F) |
| Enclosure Rating | IP66/67, NEMA 4X |
| Certifications | SIL 2/3, ATEX, IECEx, FM, CSA |
The Rosemount 3051TG Gauge Pressure Transmitter is optimized for robust pressure measurement in industrial processes:
±0.04% of span for reliable measurement.
Yes, certified for ATEX, IECEx, FM, CSA.
Enables remote diagnostics and configuration.
0.1 to 400 bar for versatile applications.
±0.125% URL/5 years for consistency.
For more information about the Rosemount 3051TG Gauge Pressure Transmitter, pricing, or to request a demo, contact our team:
