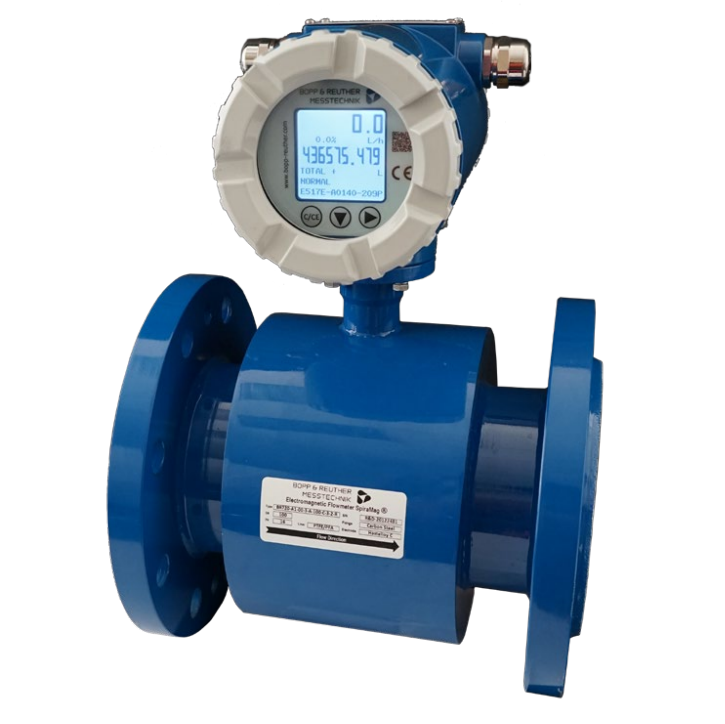

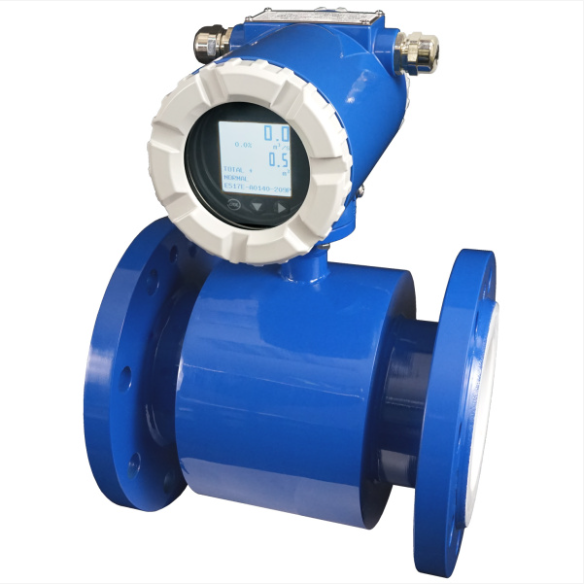

The Bopp & Reuther Electromagnetic Flowmeter (Magmeter) is a high-precision instrument engineered for accurate volume flow measurement of conductive liquids in industrial pipelines. Utilizing Faraday’s law of electromagnetic induction, it achieves ±0.2% accuracy with no moving parts, ensuring long-term reliability and minimal maintenance. Featuring a fully welded stainless steel housing, PFA or hard rubber liner options, and integrated grounding, the flowmeter excels in water treatment, chemical processing, and food production. With HART, Profibus, and Modbus communication, it integrates seamlessly into modern control systems for real-time monitoring and diagnostics.
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic (Faraday’s Law) |
| Size Range | DN10 to DN2000 |
| Accuracy | ±0.2% of MV |
| Repeatability | ±0.1% |
| Flow Range | 0.1 to 10 m/s |
| Conductivity | ≥5 µS/cm |
| Temperature Range | -40°C to +180°C (liner dependent) |
| Pressure Rating | PN10 to PN40 |
| Output Signals | 4-20 mA, Pulse, HART, Profibus, Modbus |
| Certifications | ATEX, IECEx, FM, NSF/ANSI 61 |
Any conductive fluid ≥5 µS/cm (water, acids, slurries).
Yes, excellent for solids-laden fluids.
±0.2% of measured value.
Yes, with FDA-approved liners and 3A options.
Minimal—3D upstream, 2D downstream.
