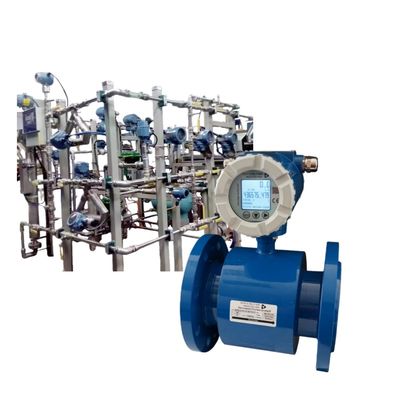

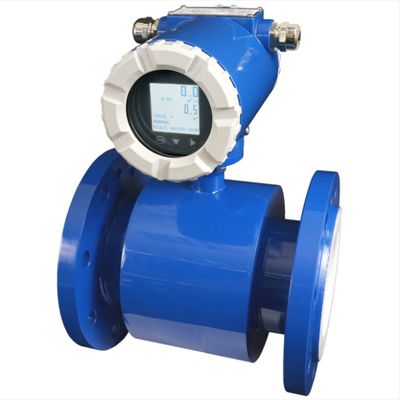

The Bopp & Reuther Electromagnetic Flowmeter is a reliable, full-bore solution for large-line flow control in municipal and industrial systems. Operating on the electromagnetic principle, it measures conductive liquids with ±0.2% accuracy across DN10 to DN2000 sizes, with no obstruction or pressure loss. The rugged design features a welded steel body, advanced PFA lining, and integrated diagnostics including empty pipe detection and electrode health monitoring. With support for HART, Profibus, and FOUNDATION Fieldbus, it enables predictive maintenance and process optimization in water distribution, wastewater, and chemical plants.
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic Induction |
| Size Range | DN10 to DN2000 |
| Accuracy | ±0.2% of MV |
| Repeatability | ±0.1% |
| Flow Velocity | 0.1 to 10 m/s |
| Conductivity | ≥5 µS/cm |
| Temperature Range | -40°C to +180°C |
| Pressure Rating | PN10 to PN40 |
| Output Signals | 4-20 mA, Pulse, HART, Profibus, Modbus |
| Certifications | ATEX, IECEx, FM, NSF/ANSI 61 |
Yes, up to DN2000 for main supply lines.
Yes, with diagnostic alerts.
≥5 µS/cm for reliable operation.
Yes, NSF/ANSI 61 certified.
Yes, low-power models available.
