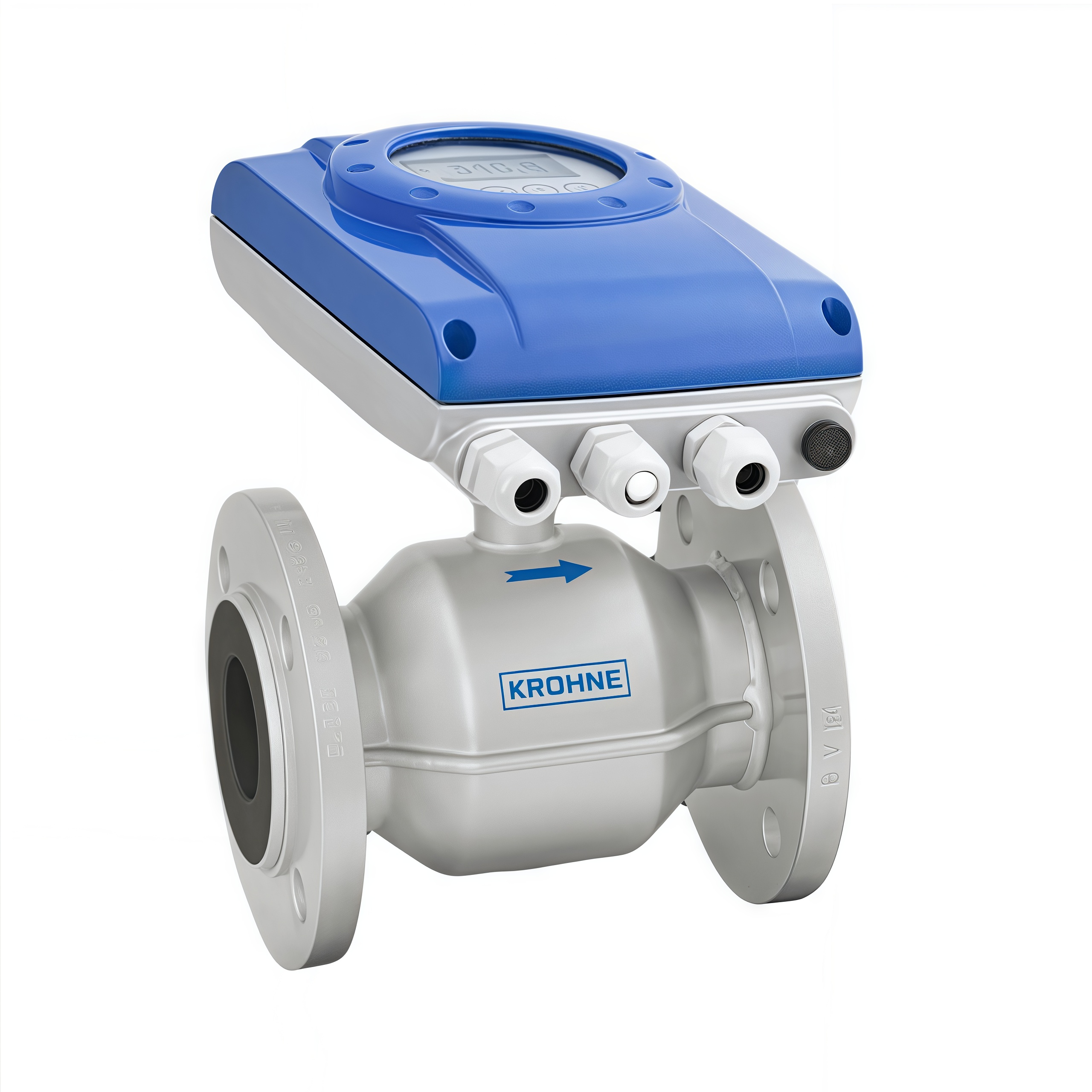

The KROHNE OPTIFLUX 2050 is a lightweight, cost-effective electromagnetic flowmeter designed for basic water and wastewater applications. Featuring a polyurethane or hard rubber liner and virtual reference technology, it eliminates grounding rings for simplified installation. The compact IFC 050 signal converter provides 4-20 mA, pulse, and status outputs with basic diagnostics. With ±0.3% accuracy and full-bore design, it offers reliable, maintenance-free measurement in drinking water distribution, sewage networks, and industrial effluent lines up to DN 1200.
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic |
| Size Range | DN 25 to DN 1200 |
| Accuracy | ±0.3% o.r. ± 2 mm/s |
| Turndown | 1:100 |
| Process Temperature | 0°C to +80°C (PU), -5°C to +90°C (rubber) |
| Pressure Rating | PN 10 to PN 40 |
| Liner | Polyurethane, Hard rubber |
| Outputs | 4-20 mA, Pulse/Frequency, Status |
| Protection | IP67 (standard), IP68 (optional) |
| Certifications | NSF/ANSI 61, WRAS, ACS |
No, virtual reference works in non-conductive pipes.
Yes, certified NSF, WRAS, ACS.
DN 25 (1 inch).
Yes, IP68 option for buried installation.
Basic 4-20 mA and pulse; HART via IFC 100 upgrade.
For more information about the OPTIFLUX 2050, pricing, or to request a demo, contact our team:
