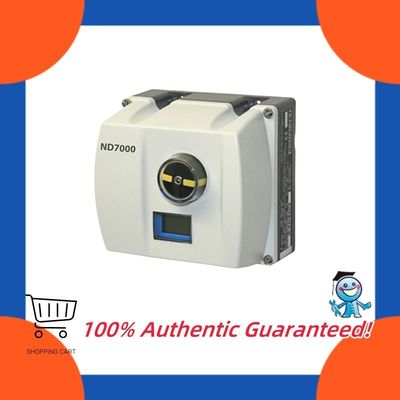

The Neles ND7000 is an intelligent digital valve controller designed for pneumatic linear and rotary actuators in process industries. Featuring HART 7 or FOUNDATION Fieldbus communication, it offers ±0.5% positioning accuracy with advanced online diagnostics via Neles Valve Manager software. The non-contact magnetic position sensor ensures wear-free operation, while low steady-state air consumption (less than 0.3 Nm³/h) reduces operating costs. With IP66/IP67 enclosure and SIL 2 certification, the ND7000 delivers reliable performance in harsh environments, enabling predictive maintenance and seamless integration into DCS systems for oil & gas, refining, and pulp & paper applications.
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA HART 7 / FOUNDATION Fieldbus |
| Positioning Accuracy | ±0.5% of span |
| Air Supply | 1.4–8 bar (20–115 psig) |
| Air Consumption | less than 0.3 Nm³/h (steady), less than 2.0 Nm³/h (dynamic) |
| Temperature Range | -40°C to +85°C |
| Enclosure | IP66/IP67, NEMA 4X |
| Hazardous Area | ATEX, IECEx, FM, CSA (intrinsically safe/explosion-proof) |
| Actuator Compatibility | Linear (IEC 60534-6) and Rotary (VDI/VDE 3845) |
| Diagnostics | Valve Manager (signature, step response, performance) |
| Weight | 2.6 kg (aluminum), 5.0 kg (stainless) |
HART 7 and FOUNDATION Fieldbus H1.
Yes, one-button auto-tune via local UI or software.
less than 0.3 Nm³/h in steady state.
Yes, for ESD valve proof testing.
Yes, 316L option for corrosive environments.
For more information about the Neles ND7000, pricing, or to request a demo, contact our team:
