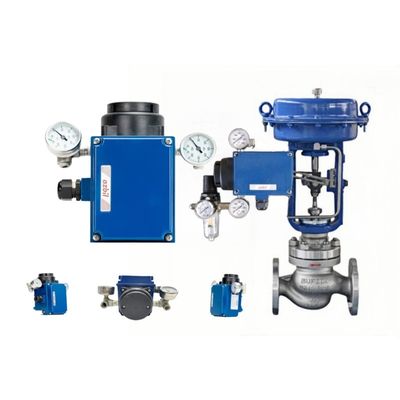

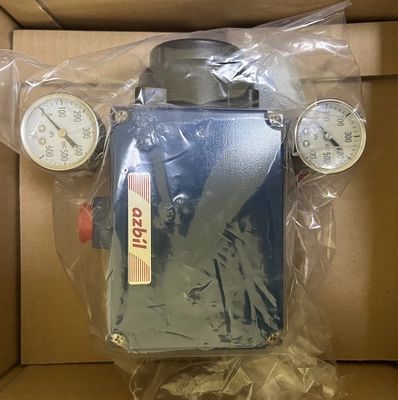

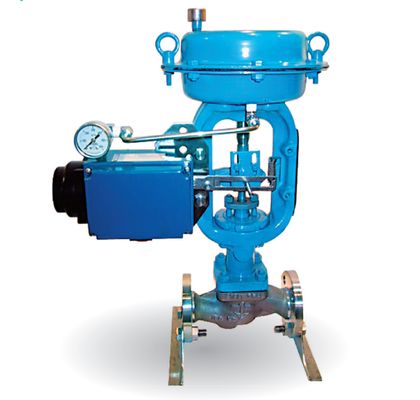

The Azbil AVP100-HP is the high-performance variant of the AVP100 series, specifically engineered for large actuators and severe service applications. It delivers an industry-leading air capacity of 800 L/min while maintaining the same compact footprint and ultra-low bleed (0.1 L/min steady state). With HART 7, one-button auto-tuning, and advanced diagnostics via Valstaff software, the HP model ensures lightning-fast response and precise control even on high-thrust or high-volume actuators. Certified for explosion-proof and intrinsically safe areas, it is the preferred choice for refineries, petrochemical plants, and power generation facilities.
| Parameter | Specification |
|---|---|
| Model | AVP100-HP (High Performance) |
| Input Signal | 4–20 mA DC + HART 7 |
| Air Supply | 400–700 kPa (recommended) |
| Air Capacity | 800 L/min (Sup) / 700 L/min (Exh) |
| Air Consumption | ≤0.1 L/min (steady) |
| Stroke | Linear: 10–150 mm; Rotary: up to 110° |
| Accuracy | ±0.5% F.S. |
| Temperature | -40°C to +80°C |
| Hazardous Area | Ex d IIC T6, Ex ia IIC T4, FM Class I Div 1 |
| Weight | 2.8 kg (aluminum), 5.5 kg (stainless) |
800 L/min — ideal for large or sticky actuators.
Yes, only 0.1 L/min in steady state.
Yes, direct drop-in replacement for SVP, VP100, etc.
Yes, full 316SS housing option.
For severe-service solutions with the AVP100-HP:
