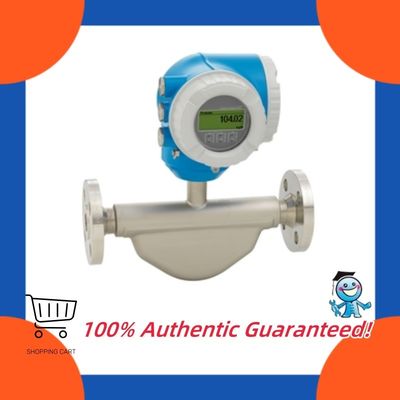

The Endress+Hauser 8E3B25 (Promass E 300, DN25/1") is a cost-optimized yet highly accurate Coriolis mass flowmeter designed for demanding oil & gas, refining, and chemical applications. Delivering ±0.10% mass flow and ±0.0005 g/cm³ density accuracy, it is fully certified for custody transfer (MID MI-005, OIML R117) and fiscal metering. Heartbeat Technology provides continuous self-diagnostics and traceable in-situ verification without process interruption. With a compact dual-compartment transmitter, HART/Modbus/Ethernet-APL, and optional Bluetooth, the 8E3B25 sets the benchmark for reliable hydrocarbon measurement in transfer, allocation, and loading operations.
| Parameter | Specification |
|---|---|
| Model | 8E3B25 (Promass E 300, DN25 / 1") |
| Max Flow Rate | 70 t/h (154,000 lb/h) |
| Mass Flow Accuracy | ±0.10% o.r. |
| Density Accuracy | ±0.0005 g/cm³ |
| Process Temperature | -50°C to +150°C |
| Pressure Rating | up to 100 bar (1450 psi) |
| Outputs | 4–20 mA HART, Modbus RS485, Ethernet-APL |
| Hazardous Area | ATEX, IECEx, FM, CSA (Zone 1 / Div 1) |
| Protection | IP66/67, NEMA 4X |
Yes — OIML R117, MID MI-005, and local weights & measures worldwide.
Yes — Heartbeat Technology generates traceable report in minutes.
±0.0005 g/cm³ — ideal for product identification.
