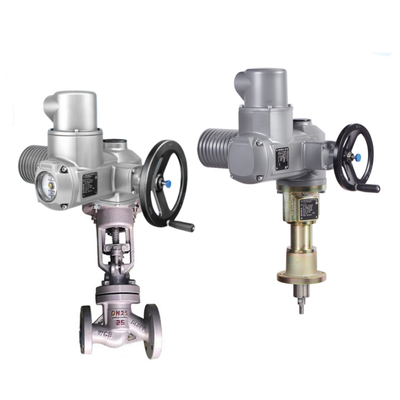

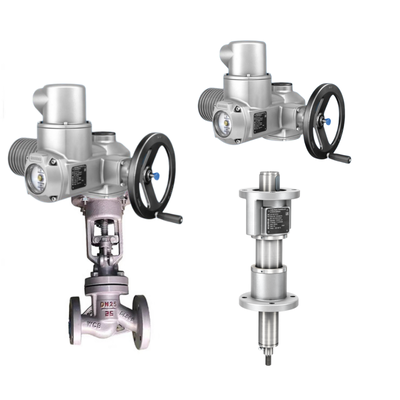

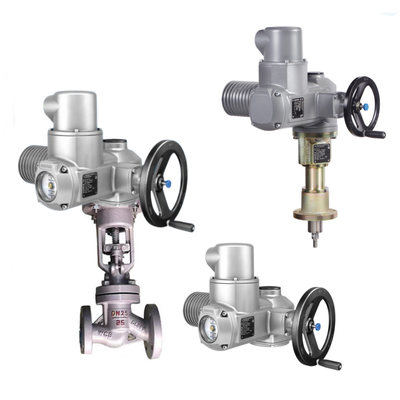

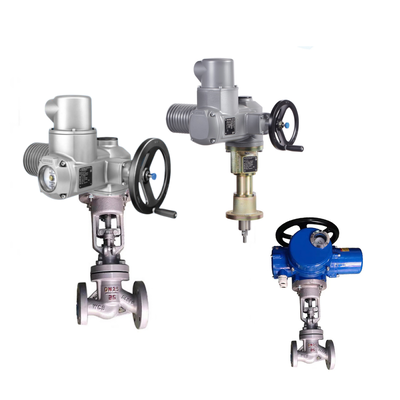

The AUMA SA 07.2 – SA 16.2 multi-turn actuators combined with LE 12.1 – LE 200.1 linear thrust units form a robust electric actuation system for converting rotary torque into linear thrust on valves requiring stem extension/retraction. These actuators deliver adjustable torque from 10 Nm to 1,000 Nm across a wide speed range, suitable for open-close duty in industrial valve applications. The linear thrust units enable precise axial force up to 360 kN over strokes from 50 mm to 500 mm. Designed for 3-phase AC motors, the system ensures reliable operation in demanding environments, with self-locking gears and customizable configurations for rising or non-rising stems.
| Parameter | Details |
|---|---|
| Torque Range (S2-15 min) | 10 – 1,000 Nm (adjustable) |
| Output Speed (50/60 Hz) | 4 – 180 rpm / 4.8 – 216 rpm |
| Thrust Range | 4 – 87 kN min, up to 360 kN max (short-term) |
| Stroke Range | 50 – 500 mm (higher on request) |
| Valve Attachment | EN ISO 5210 F07–F16; DIN 3210 options |
| Stem Diameter (Rising) | Max 26 – 100 mm (size-dependent) |
| Handwheel Reduction | 11:1 – 4:1 |
| Weight (Actuator + LE) | Approx. 19 – 83 kg + 8 – 68 kg |
| Ambient Temperature | Standard -25 °C to +80 °C |
| Enclosure Protection | IP67 (standard), IP68 option |
