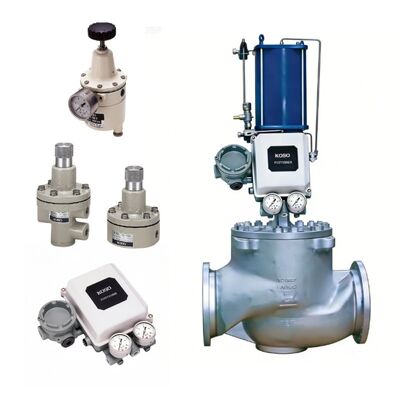

The NEWAY CSC Series Sleeve Regulating Valve, integrated with KOSO EP800 Valve Positioner and PRF300 Filter Regulator, is a high-performance industrial control assembly. It delivers precise flow regulation, stable operation, and reliable performance, making it ideal for fluid control in demanding industrial processes such as petrochemical, power generation, and oil & gas.
| Valve Series | NEWAY CSC Series |
|---|---|
| Valve Type | Sleeve Regulating Valve |
| Positioner Model | KOSO EP800 |
| Filter Regulator Model | PRF300 |
| Valve Size | 1-1/2" ~ 20" |
| Pressure Rating | ANSI Class 150 ~ 2500 |
| Body Material | Carbon steel, stainless steel, alloy steel, duplex steel |
| Trim Material | Stainless steel, alloy steel, duplex steel |
| Temperature Range | -196°C ~ 538°C |
| Flow Characteristics | Equal percentage, linear, quick open |
| Rangeability | 50:1 |
| Leakage Class | FCI 70-2 IV, V, VI (soft seal) |
| Positioner Input Signal | 4-20mA DC |
| Air Supply | 1.4 ~ 7.0 bar (20 ~ 100 psi) |
| Design Standard | IEC60534 |

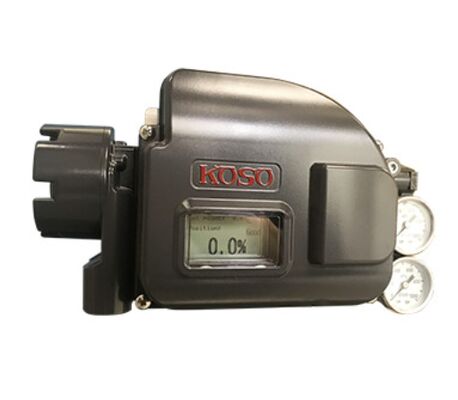

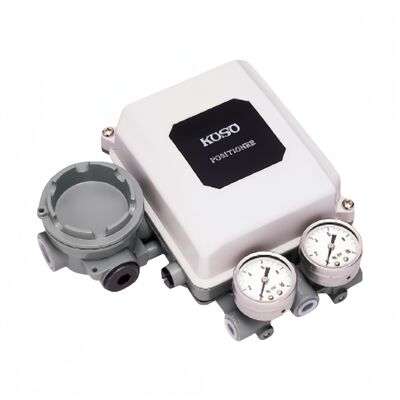

Q: What is the function of the KOSO EP800 positioner?
A: It ensures accurate valve positioning and provides real-time feedback for stable process control.

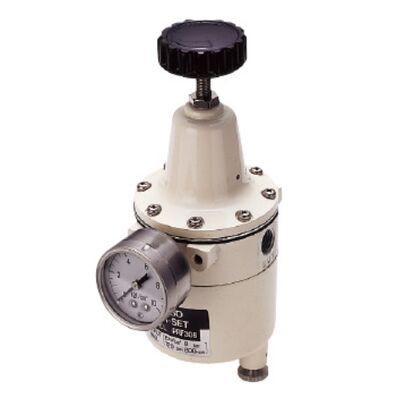

Q: What does the PRF300 filter regulator do?
A: It filters air impurities and stabilizes air pressure to protect the positioner and valve.
Q: Can this valve be used in high-temperature environments?
A: Yes, it operates stably in temperatures ranging from -196°C to 538°C.
Q: What material options are available for the valve body?
A: Carbon steel, stainless steel, alloy steel, and duplex steel are available.
Q: Is the valve easy to maintain?
A: Yes, its compact structure allows for easy installation, calibration, and maintenance.
