| Attribute | Value |
|---|---|
| Pneumatics | Air or Sweet Natural Gas |
| Power Supply | 4-20mA |
| Connections (Supply and Actuator) | 1/2" NPT |
| Accuracy | ± 0.5 percent Full Span |
| Valve type | Control Valve |

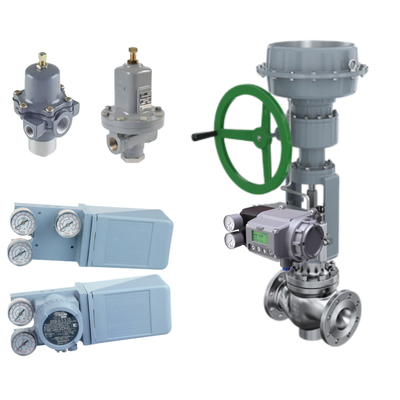

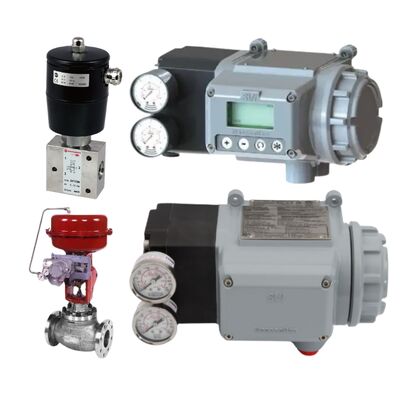

The Masoneilan SVI2 is a next-generation digital valve positioner designed for precise pneumatic control in industrial automation. As part of the advanced SVI II series, this device combines HART protocol communication with customizable features to optimize valve performance. Ideal for both retrofitting existing systems and new installations, it supports single/double-acting actuators and offers stock availability for urgent requirements.
| Parameter | Details |
|---|---|
| Model | SVI3-AP Series |
| Input Signal | 4-20mA (HART 5/7 compatible) |
| Communication | HART® eDDL/FDT-DTM |
| Accuracy | ±0.5% span |
| Response Time | <500ms |
| Working Temperature | -40°C to +85°C |
| Protection | IP66/IP67, NEMA 4X |
| Certification | ATEX, FM, IECEx, CSA |
| Supply Pressure | 20-150 psi (1.4-10.3 bar) |
| Air Consumption | 0.1 SCFM (steady-state) |
| Installation | Direct/bracket mount |
| Housing Material | Aluminum (optional stainless) |
