Brand New OEM F-isher Butterfly Pneumatic Control Valve and DVC6200 Valve Positioner

1
MOQ
US $1850.00 - 2300.00/ Set
السعر
Brand New OEM F-isher Butterfly Pneumatic Control Valve and DVC6200 Valve Positioner
ميزات صالة عرض منتوج وصف التقييمات والمراجعات طلب عرض أسعار
ميزات
مواصفات
واجهة البيانات: سلكي
تشخبص: يملك
إشارة الإدخال: كهربائي
الحد الأقصى لضغط المخرج: 145 PSIG
إبراز:

Fisher butterfly pneumatic control valve

,

Fisher DVC6200 valve positioner

,

OEM pneumatic control valve with positioner
معلومات اساسية
مكان المنشأ: الصين
اسم العلامة التجارية: F-isher
رقم الموديل: DVC6200
شروط الدفع والشحن
تفاصيل التغليف: صندوق من الورق المقوى/قفص خشبي
وقت التسليم: 6-8 أسابيع
شروط الدفع: تي/تي
القدرة على العرض: 3000 مجموعة في السنة
منتوج وصف
F-isher Pneumatic Butterfly Valve with DVC6200 Positioner Product Description
Product Overview

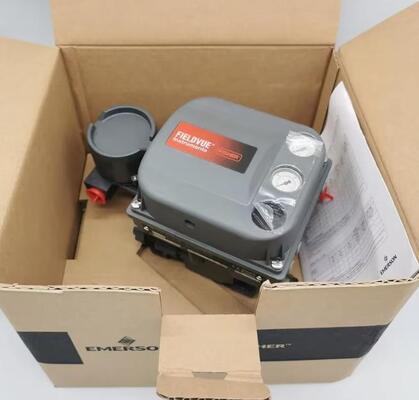

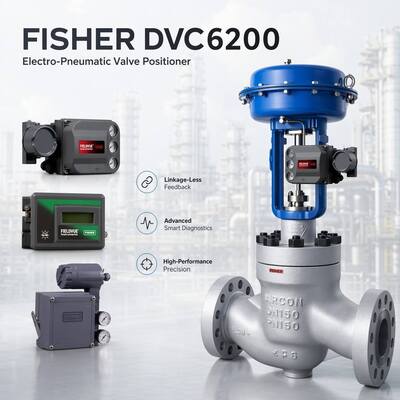

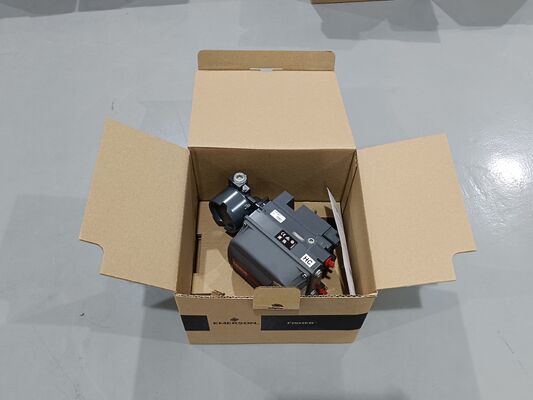

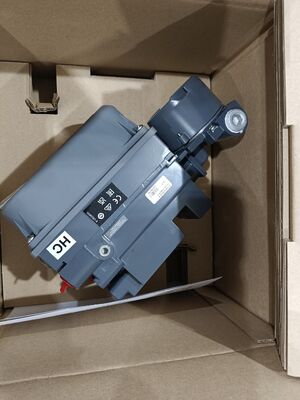

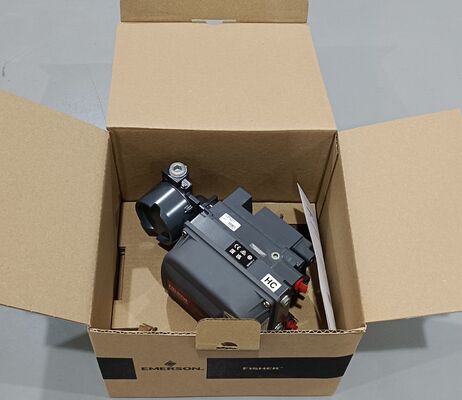

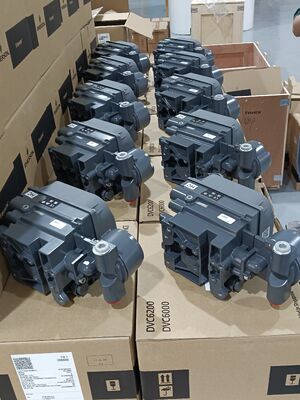

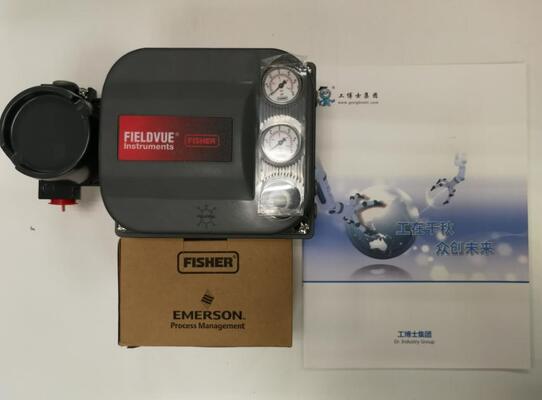

  1. Complete valve assembly consisting of F-isher pneumatic control butterfly valve and E-merson F-isher FIELDVUE DVC6200 smart digital positioner, designed for accurate process flow regulation.
  2. Integrated with HART bidirectional communication protocol, supporting remote parameter configuration, real-time valve position monitoring and built-in valve health diagnostics via the DVC6200.
  3. Pneumatic actuator driven design, available in multiple body materials, seal options and connection standards to match various fluid and working condition requirements.
Technical Specifications
Parameter Official Specification
Valve Type Pneumatic control butterfly valve
Positioner Model F-isher  DVC6200
Valve Size Range DN50 – DN600 (2" – 24", standard configurations)
Pressure Rating Class 150 / Class 300
Input Signal 4–20 mA DC with HART 5/7 protocol
Supply Air Pressure 1.4 – 6.9 bar (20 – 100 psi)
Positioning Accuracy ±0.1% of full span
Enclosure Rating IP66 / NEMA 4X
Standard Certifications ATEX, IECEx, FM, CSA (hazardous area approved)
Operating Temperature Range -29°C to 200°C (standard NBR seal)
Application Industry
  1. Oil & Gas: Deployed in crude oil/gas gathering pipelines, refinery separation units and tank farm systems, certified for safe operation in explosive hazardous zones.
  2. Chemical & Petrochemical: Applied for flow regulation of corrosive and neutral process media in reactor feeding, fractionation and circulating piping systems.
  3. Power & Water Treatment: Used in steam, circulating water and water supply systems of thermal power plants and municipal water treatment projects.
Common Problems & Solutions
  1. No pneumatic output from positioner: Verify stable 4-20mA input signal and supply air pressure; clean the air filter regulator to eliminate air path blockage.
  2. Valve position deviation & low accuracy: Run full auto-calibration via HART communicator; check for actuator air leakage and valve stem jamming.
  3. HART communication failure: Check signal wiring polarity and loop power supply; isolate signal cables from strong electromagnetic interference sources.
Replacement Models
  1. F-isher DVC2000 Positioner + Same-spec Butterfly Valve: Cost-effective entry-level alternative with basic control functions for general working conditions.
  2. F-isher DVC6200 SIS Positioner + Valve Assembly: SIL-certified upgraded version dedicated for safety instrumented systems.
  3. F-isher V200 Vee-Ball Butterfly Valve + DVC6200: High-performance rotary control valve solution for severe service and high-pressure drop conditions.
Why Buy From Us
  1. 100% original authentic E-merson F-isher products, supplied with full factory certification documents and standard manufacturer warranty.
  2. Professional technical team specializing in industrial valve automation, providing pre-sales model matching and after-sales commissioning troubleshooting support.
  3. Mature international trade service system, supporting EXW, FOB, CIF and other trade terms with complete export customs clearance documents.
Stock & Delivery Time
  1. Standard DN50–DN200 size assemblies are kept in local warehouse and can be dispatched within 2 working days after payment confirmation.
  2. Bulk orders of 10 sets and above or customized material/seal configurations require 7–12 working days of preparation lead time.
  3. International express delivery (DHL/FedEx/UPS) takes 5–7 working days to most global regions; sea freight is available for large-volume orders.
